The construction area of this project is 7770.77m 2, and the main body is frame structure. The roof truss space frame is divided into 2 groups, the size is 55.2×49.5m, the bolt ball joints, the square quadrangular pyramid bolt spherical space space frame structure, the space frame size is 3.3×5.45m, the thickness is 1.8-4m, and the top is supported by 36 supports The whole roof truss. The height of the space frame is 15.8m-22.13m, the total weight is 278t, the total number of nodes is 1092, and the total number of rods is 4160.
In order to prevent the grid frame from overturning as a whole, a support platform is built with heavy-duty steel pipe scaffolding. Each platform is covered with thickened scaffolding boards, and the support platform is set at the load-bearing node position of the support.

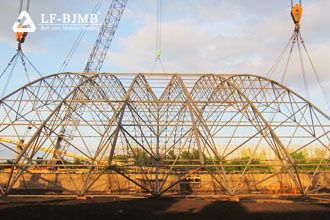

During the overall lifting and lowering process, in order to ensure that the entire building only moves in the vertical direction and does not allow horizontal displacement, a limit device is used to control the horizontal displacement.

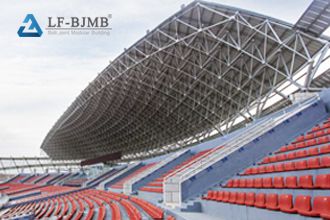

The space frame structure canopy is connected by steel rods through nodes, forming a construction mode with high spatial rigidity, good integrity and simple assembly. The layout of the steel space frame structure is flexible, and can adapt to buildings with different spans, different plane shapes, and different functional requirements. The welding process and installation quality are controllable, which meets the objective requirements of building industrialization.
Generally speaking , light steel structure has more advantages in price and aesthetics . At the same time , the rapid construction cycle, adaptability to different needs, and relatively low price are the reasons for its rapid promotion . I believe that the future development will be faster . The space frame structure also has its specific market demand , and it will not withdraw from the market in a short time. It is estimated that it will gradually merge with the light steel structure in the future development to form a new, more reasonable and safer new type structure type.
