What are the support methods of the space frame structure

What are the support methods of the space frame structure

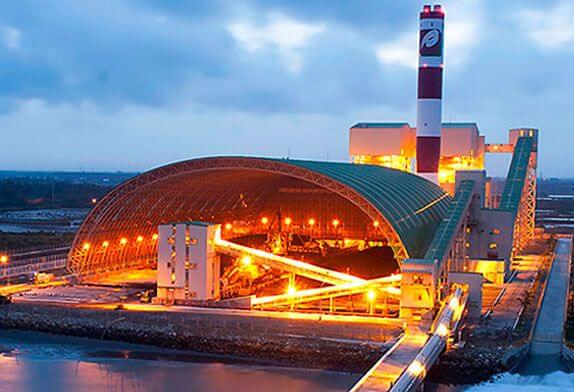

Peripheral support space frame means that all nodes on the periphery of the space frame are support nodes. The support node can be supported on the top of the column or on the contact beam. This type of space frame transmits force directly and receives uniform force, which is a universal support method.

The three-sided support space frame refers to the three-sided support space frame, when one side axis of a rectangular building must be designed as an open gate and passage due to production needs, or one side of the building is not suitable for load-bearing components due to the requirements of the building function.

The two-sided support space frame refers to the quadrilateral space frame. Only the nodes on the opposite sides are designed as supports, and the other two sides are free edges. This type of grid support is rarely used.

The setting principle of the point support space frame is to reduce the positive bending moment and deflection, so that the internal force of the entire space frame tends to be uniform. For single-span multi-point support, the cantilever length should be 1/3 of the middle span, for multi-span multi-point support , the overhang length should be 1/4 of the middle span.

The combination of the peripheral support grid and the point support grid refers to the addition of intermediate support points inside the building on the basis of the peripheral support, which can effectively reduce the internal force peak and deflection of the grid members. This form is especially suitable for large-column net industrial plants, warehouses, exhibition halls and other buildings.
