Airport T2 Terminal Project

terminal airport building steel structure roof airport buildinglarge span airport building space truss terminal building space truss building

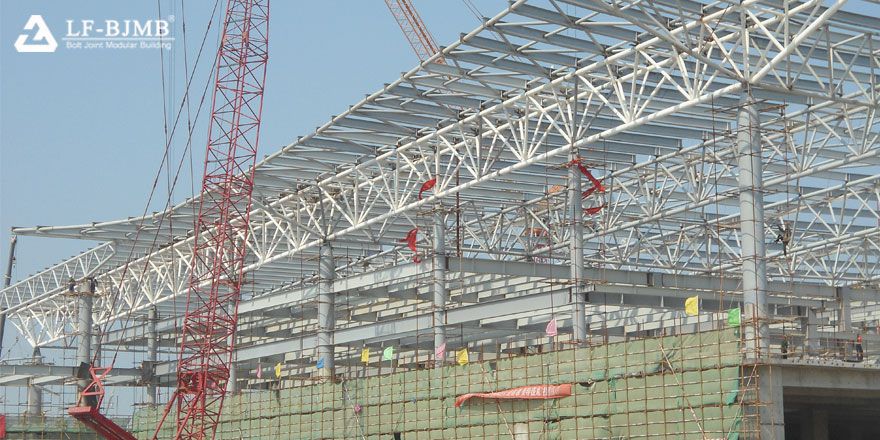

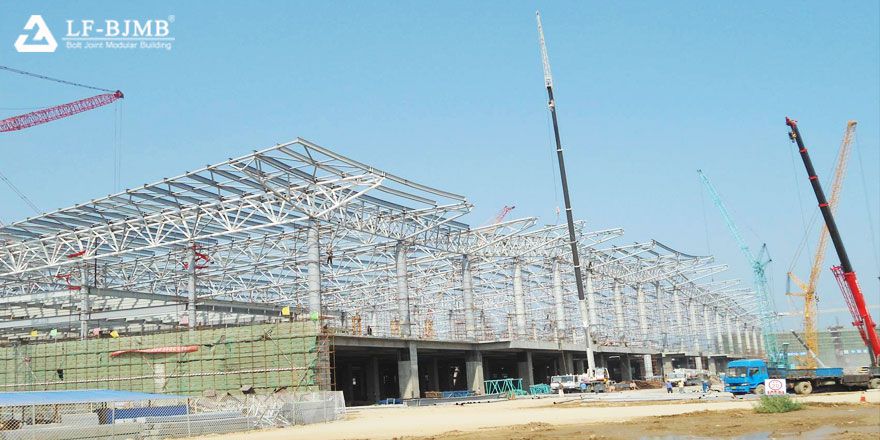

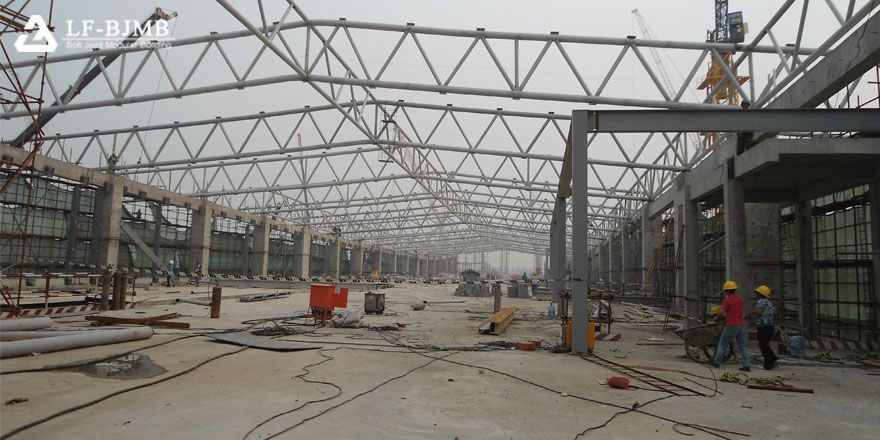

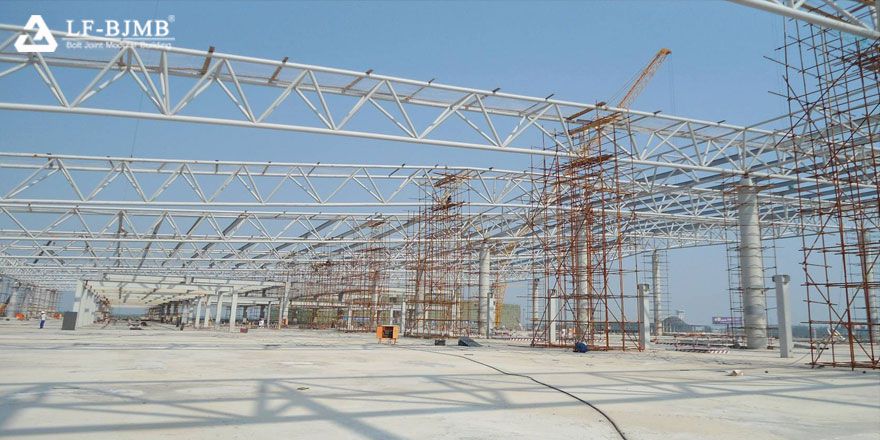

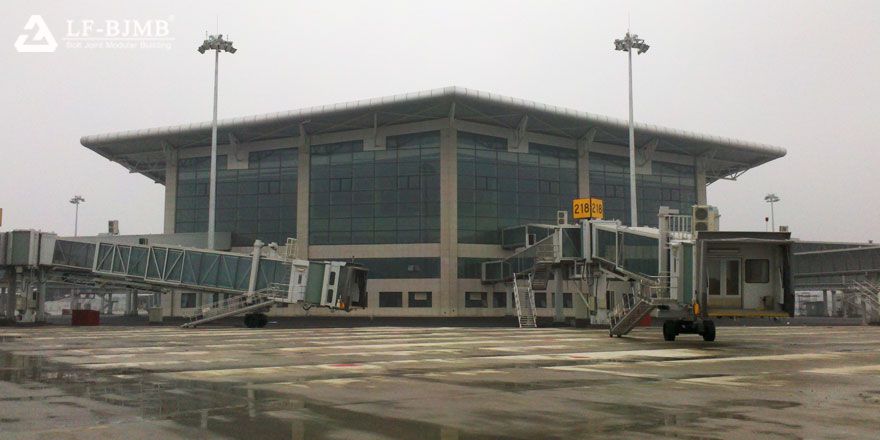

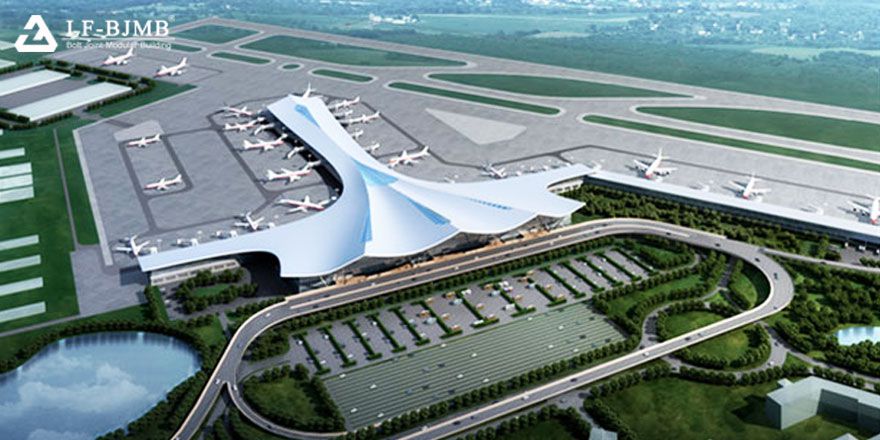

The T2 terminal building consists of the main building, the two wings of the main building, the airside concourse and the satellite hall. The roof form of the main building is a three-ridge double-curved structure, which  adopts an inverted triangular space truss.

The truss of the main terminal building of is a two-cross span with 45m + 57m, and the middle part is a three-cross span with 45m + 57m + 24m / 42m / 51m; the height of the truss is 3.5m; the axis of the main building is 306m long, and the roof horizontal projection area is about 71754 ㎡.
