Hangar/Airport Terminal Solutions

Engineering characteristics

1.Whether the terminal or hangar are required to have a large span,high space requirements,the general structure is difficult to meet,even if it does,the economy efficiency is also very low.

2.Terminal and hangar are very high security requirements,the security of the general structure is low.

3.The terminal requires beautiful shape,which is not easy to achieve.

4.Long construction period,difficult on-site welding and inspection,difficult to eliminate safety hazards.

As an important connecting to the outside of the city,the airport’s absolute position cannot be shaken in the city.The local government attaches great importance to the construction of the airport and prefers to adopt some new structures,shapes and some unique urban cultural elements to enhance the image of the city.

Application area

1.Aircraft maintenance warehouse space frame

2.Airport space frame

3.Terminal space frame

4.Aircraft assembly workshop

Solutions

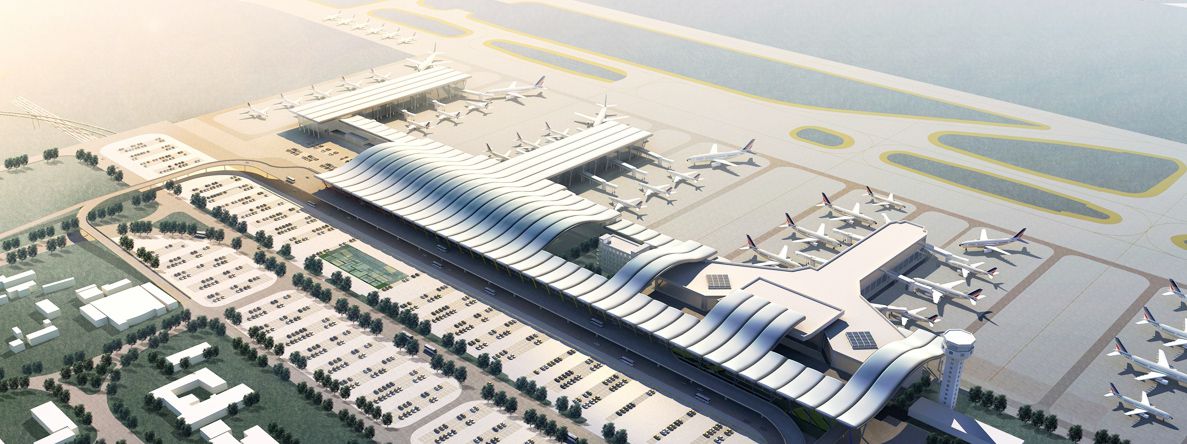

The steel structure of the airport is mainly used in the waiting hall and hangar.

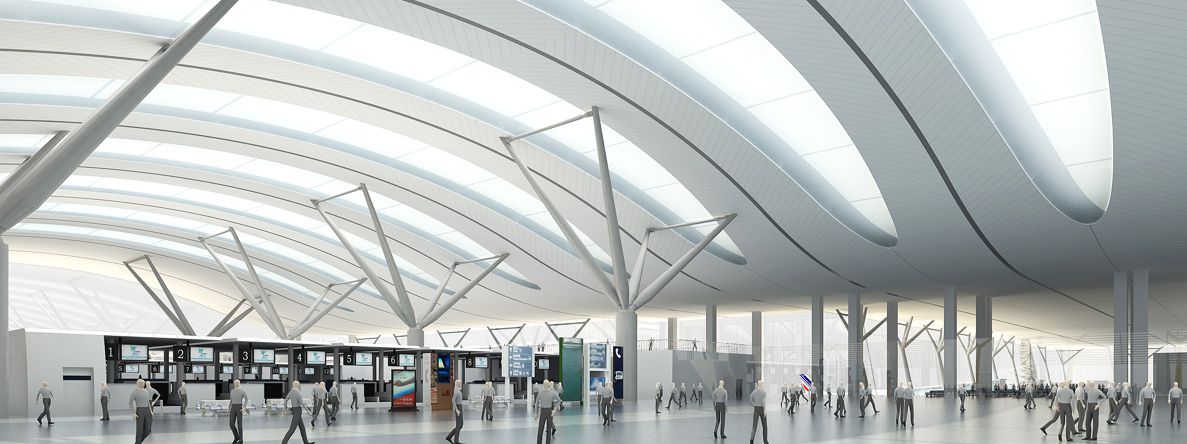

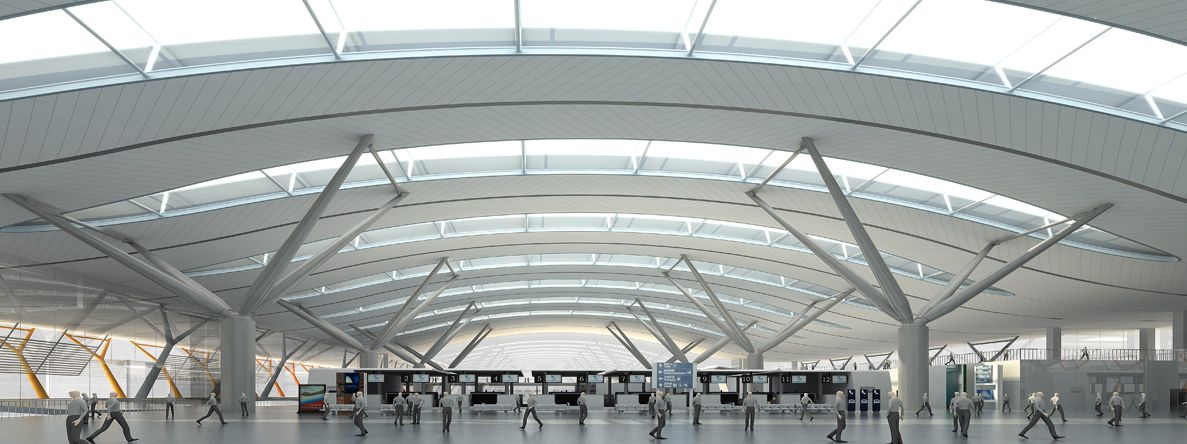

The steel structure form of the waiting hall is generally pipe truss,prestressed steel structure,space frame,etc.,the auxiliary structure often uses membrane structure,formed steel structure,the external wall uses various forms of curtain wall,the roof is generally aluminum plate,aluminum magnesium manganese plate,etc.,all building materials are generally very high-grade.

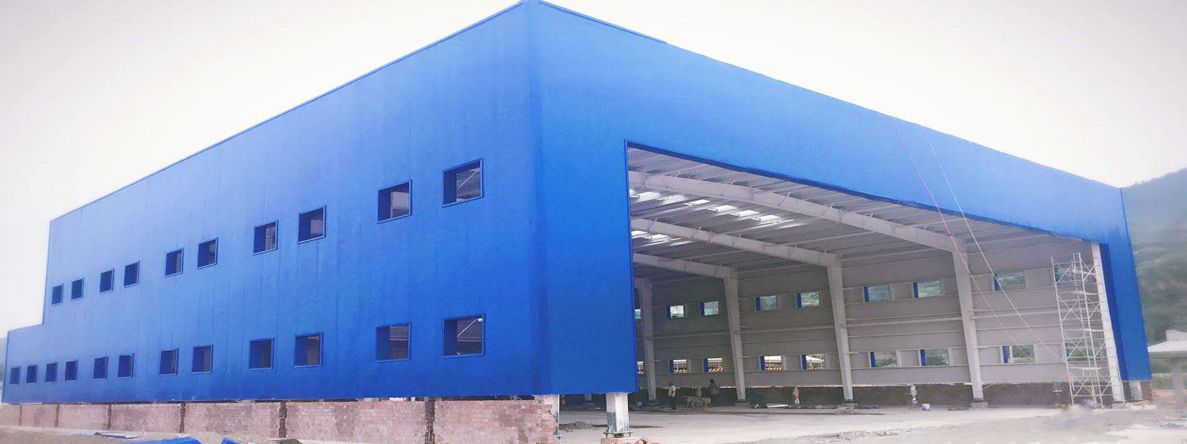

The hangar is mainly used for aircraft maintenance and repair,with large span and higher functional requirements than aesthetic requirements.Generally use space frame structure,tube truss,roof for aluminum,aluminum magnesium manganese plate.

1.BJMB structure can be easily achieved with large span and large space.

2.BJMB structure has multiple statically indeterminate stress characteristics and is very safe (the highest safety performance in civil and public buildings).

3.Various shapes can be achieved.

4.The site should be bolted as far as possible,rarely welding on site,short construction period,controllable hidden dangers,good installation quality.

Process description

1.Design process:

The security level can be controlled at the design stage. It is generally recommended that the terminal and hangar be calculated and controlled according to the highest security level,which can achieve the requirements of 50 or 100 years useful life.

2.Production process:

If properly calculated,95~100% components can be manufactured in factory theoretically,and transported to the site for installation after strict inspection.

3.Installation process:

Most installations are bolted,with fast installation,guaranteed quality and less safety hazards.We recommend skilled workers to install the terminal,so as to avoid unskilled workers to undertake the main installation.

LF-BJMB owns the perfect process of design, manufacturing & construction.LF can build different appearances of space frame structure.
Do you have a space frame construction project we can help with?Conatact us E-mail now:[email protected]
