The cement clinker production line project includes the limestone pre-homogenization storage yard, the raw coal pre-homogenization storage yard, the clinker warehouse, and the steel space frame project of the raw coal storage shed.
At present, the production line stacking shed in the cement industry is used for storing limestone, auxiliary materials, and clinker, and the space frame structure is mostly used. It requires a large span, a large space, and a generally long length. The space frame structure has been widely used in cement production lines. Xuzhou LF Company undertook the project of cement clinker production line, the limestone, auxiliary material pile, and clinker warehouse all adopt a square quadrangular pyramid space frame structure.
The space frame project has a large span, a high height, and a large coverage area. If the traditional space frame-filled scaffolding construction scheme is used, the cost and construction period will be high.

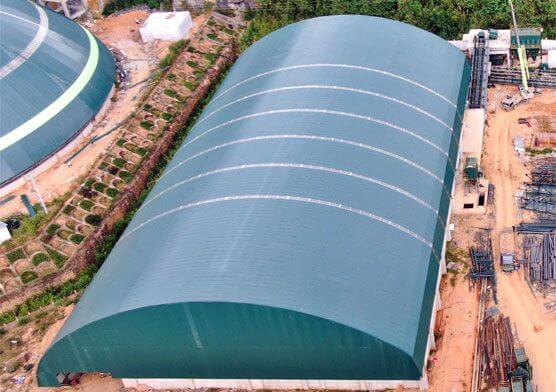

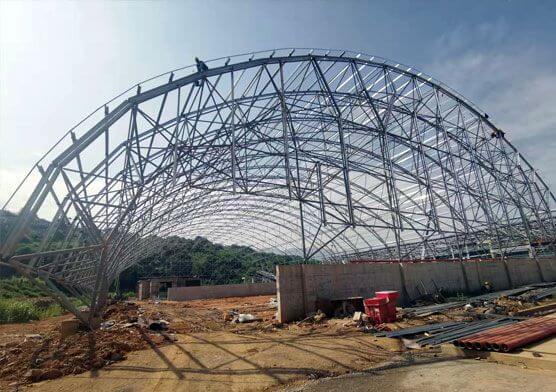

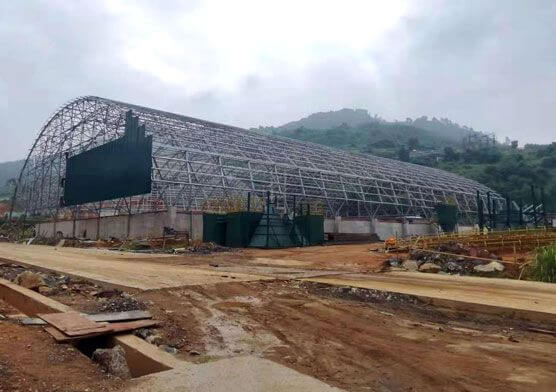

1. Raw coal storage shed steel space frame project
|
Product application |
Raw coal shed steel space frame steel structure project |
|
Space frame span |
56m |
|
Length of space frame |
90m |
|
Space frame height |
19.75m |
|
Base elevation |
1-1 axis +3.0m 1-2 axis +0.5m |

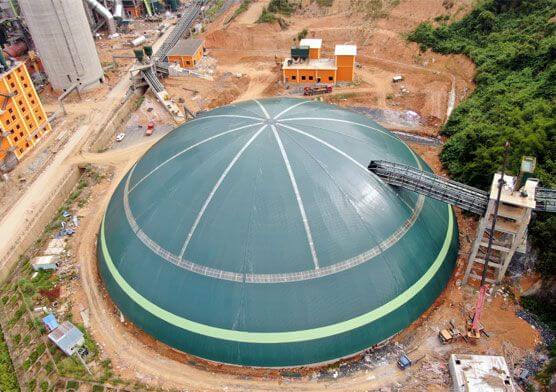

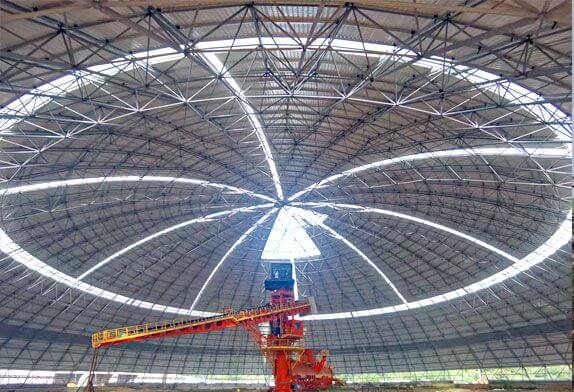

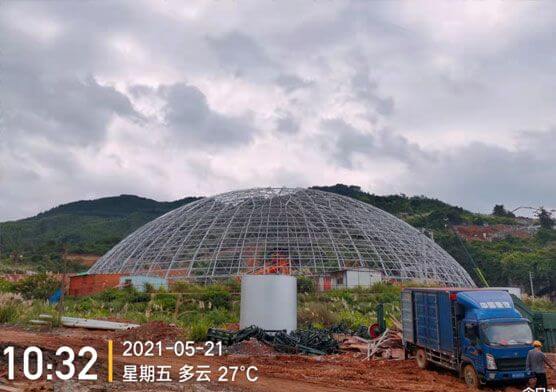

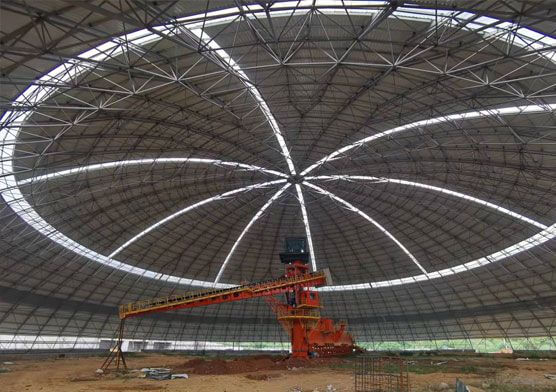

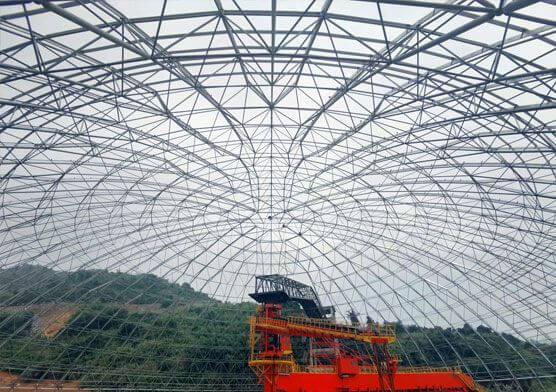

2. Limestone pre-homogenization storage yard steel space frame project
| Product application |
Limestone storage yard |
|
Diameter of space frame |
97m |
|
Space frame |
31.05m |
|
Base elevation |
+0.45m |
|
Installation method |
Small unit high-altitude bulk |

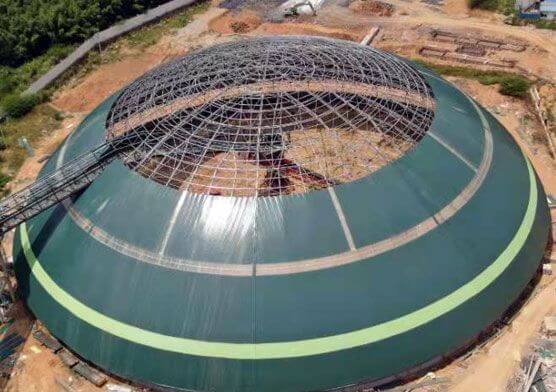

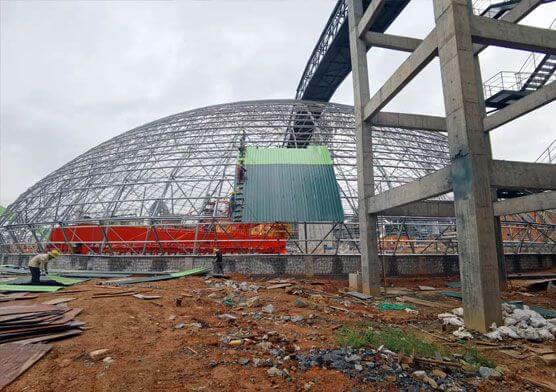

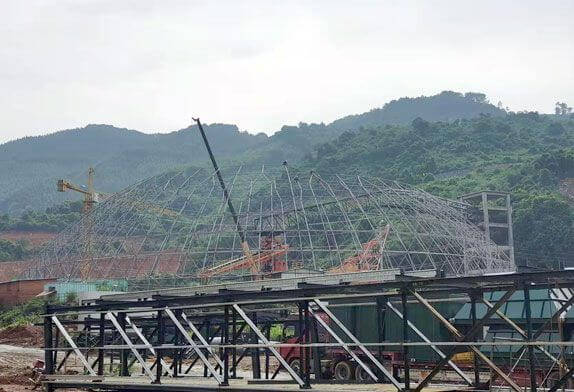

3. Raw coal pre-homogenization storage yard steel space frame project
| Product application |
Dome raw coal storage shed |
|
Diameter of space frame |
97m |
|
Space frame |
31.05m |
|
Base elevation |
+0.45m |
|
Installation method |
high-altitude bulk |

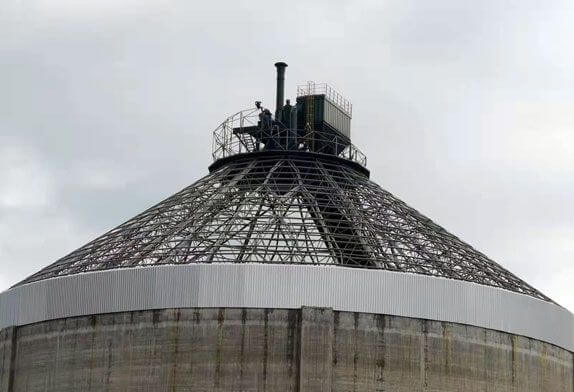

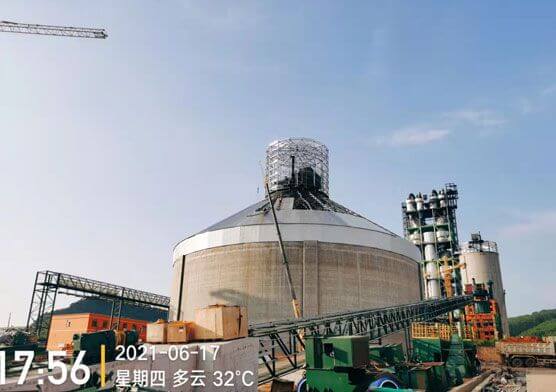

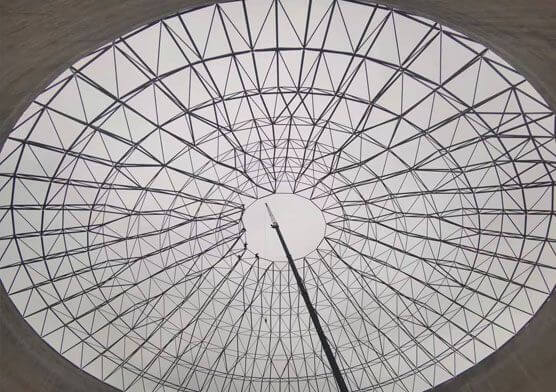

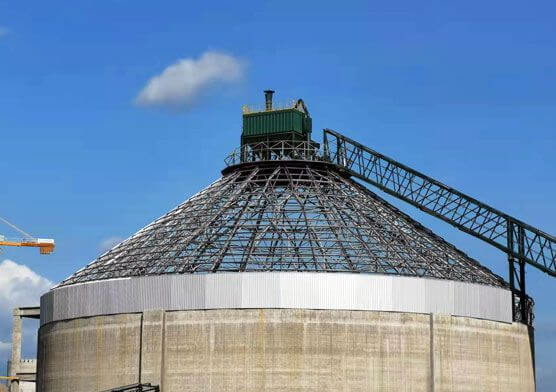

4. Clinker warehouse steel structure space frame project
| Product application |
Clinker storage shed |
|
Diameter of space frame |
60.6m |
|
Space frame height |
35.2m |
|
Base elevation |
+21.5m |
|
Installation method |
high-altitude bulk |
