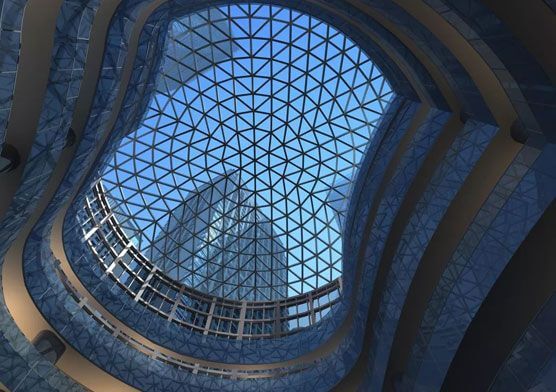

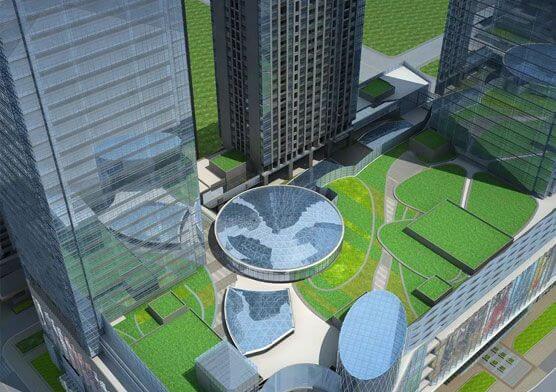

♦The glass atrium roof skylight design for the shopping mall is a special-shaped steel structure single-layer reticulated shell structure. The project has a total of 4 monomers, including 1 dome glass atrium roof structure design and 3 special-shaped skylights roof.
♦The glass roof construction project is mainly TP8+12A+TP6+1.14PVB+TP6 hollow tempered Low-E laminated glass, the facade adopts TP12+12A+TP12 hollow tempered Low-E full ultra-white glass, and the door adopts 12mm thick tempered glass.

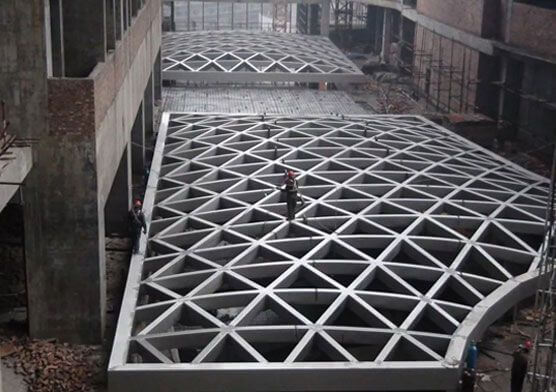

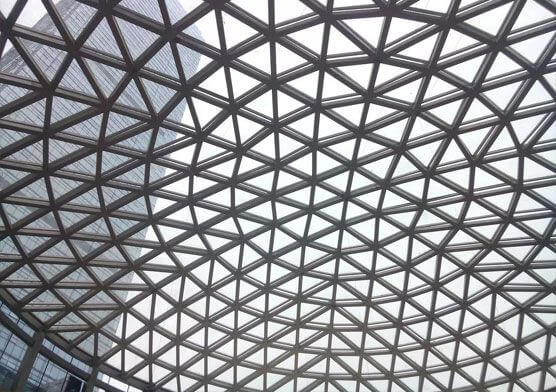

1、The steel structure glass atrium roof skylight design is a space curved surface, adopts a single-layer reticulated shell structure, and the reticulated shell boundary is supported at multiple points.
The reticulated shell supports are basin supports designed by professional manufacturers, some of which are elastic supports with horizontal deformation, and some are full-scale supports with or without horizontal deformation.
2、The main load-bearing structure of the glass atrium architecture roof has a safety grade of Grade 1, and the main load-bearing components have a fire resistance grade of Grade 2.
3、For the suspended operation platform using this method, the total construction period shall not exceed 70 days.
